Alinco DR138 (H) VHF

Output power selectable 60W/25W/10W

Frequentie: 144.000-145.9975

High technology PLL synthesized


Productomschrijving

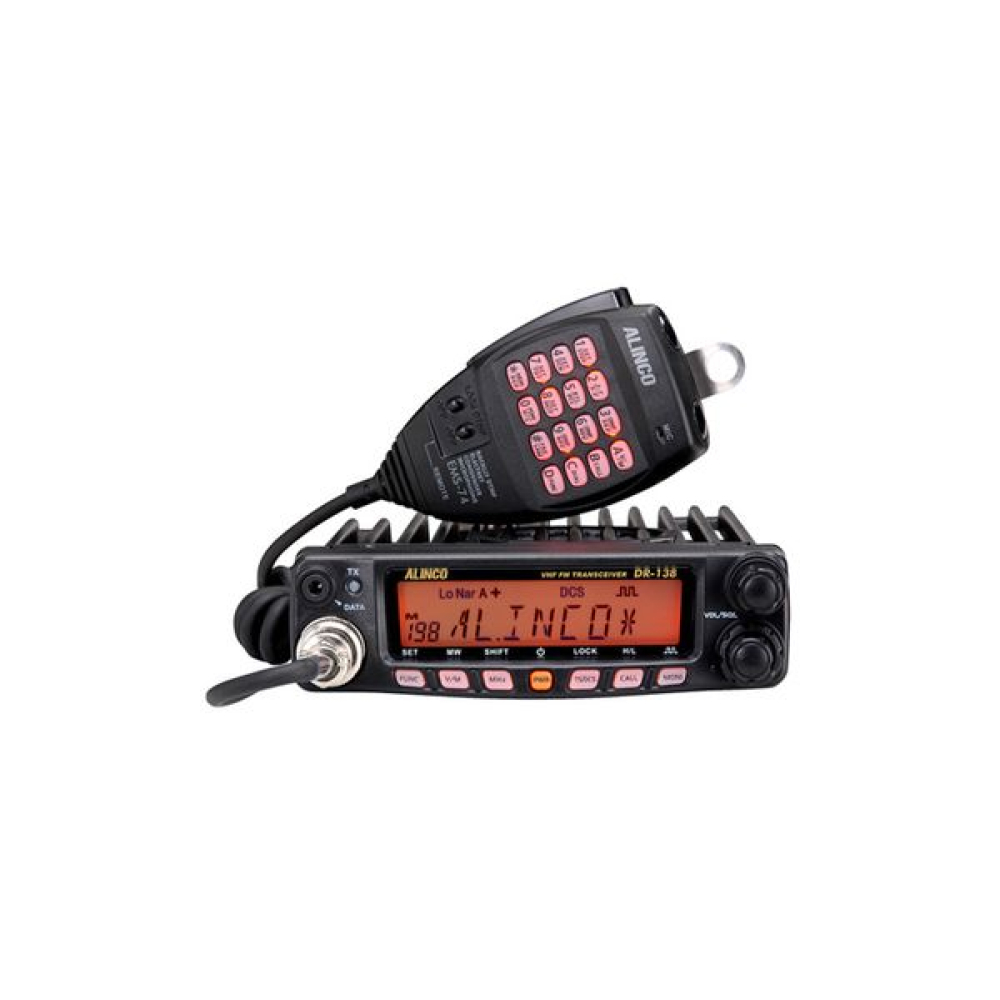

The DR-138 H is a high technology PLL synthesized radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138 H the radio of choice for demanding amateur/professional operators.

Download here the Flyer

Technical specifications:

• Frequentie: VHF
• Output power selectable 60W/25W/10W
• Frequency range: 144.000-145.9975
• PC programmable 200ch
• Alphanumeric name tags
• Voice Compander (Reduce Noise & enhance audio clarity)
• Calling features built in;2-Tone, 5-Tone, 50 CTCSS, 114DCS, 4 Toneburst tones and DTMF/ANI decode
• Radio stun/kill/revive functions to protect your communication security
• Large, bright LCD and easy to operate backlit keys
• Multifunction, backlit microphone enables direct frequency entry & more from keypads
• Various scan modes, Key lock, Wide/Narrow operation
• Inversion scramble feature
• Channel Spacing
  25KHz (Wide mode)
  20KHz (Middle mode)
  12.5KHz (Narrow mode)
• Channel step
  2.5KHz,5KHz, 6.25KHz, 8.33KHz, 10KHz,
  12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
• Operating Voltage 13.8V DC ±15%
• Squelch Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
• Frequency Stability ±2.5ppm
• Operating Temperature -20~+60
• Dimensions 145 (W) x 47 (H) x 190 (L)mm approx.
• Weight approx. 1.23kg

Package contents:

• 1 x Alinco DR-138 H Transceiver
• 1 x Microphone
• 1 x Mounting Bracket with Fixing Screws
• 1 x Power Cord
• 1 x User Manual in English
