JCD - 201M Echo P6

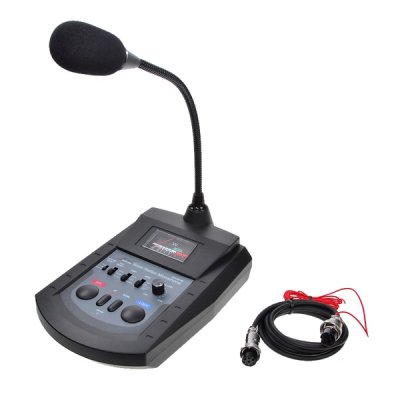

The JCD 201M 6P Echo is a very solid desk microphone and will be delivered with a free adapter cable for standard CB 6 pin radios. The JCD 201M has many functions to set and it is possible to connect 2 radios on the microphone.

We only confirm the full operation with the Midland Alan 48 PRO.

Always check carefully if your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.


Features

• Suitable for: Midland Alan 48 PRO
• Up down: Yes
• Lock button: Yes
• Echo Function: Yes
• TX warning: Yes
• Connector for optional PTT: Yes
• Microphone type: Power microphone / Echo microphone

• Mechanical data

• Microphone connector: 6-pin

• Microphone wiring

• Up: Pin 4
• Down: Pin 4
• Receive: Pin 2
• Transmit: Pin 3
• Mic Audio: Pin 1
