€1.274,00
Ex Tax: €1.052,89
- Ex Tax:
- €1.052,89
- Product Code:
- Maco Laser 400 10 En 11 Meter Basisantenne
- Brand:
- Maco
Description
Maco Laser 400 10 en 11 meter basisantenne
Lengte 945cm
Gain 17dB
12 Elementen
Productomschrijving

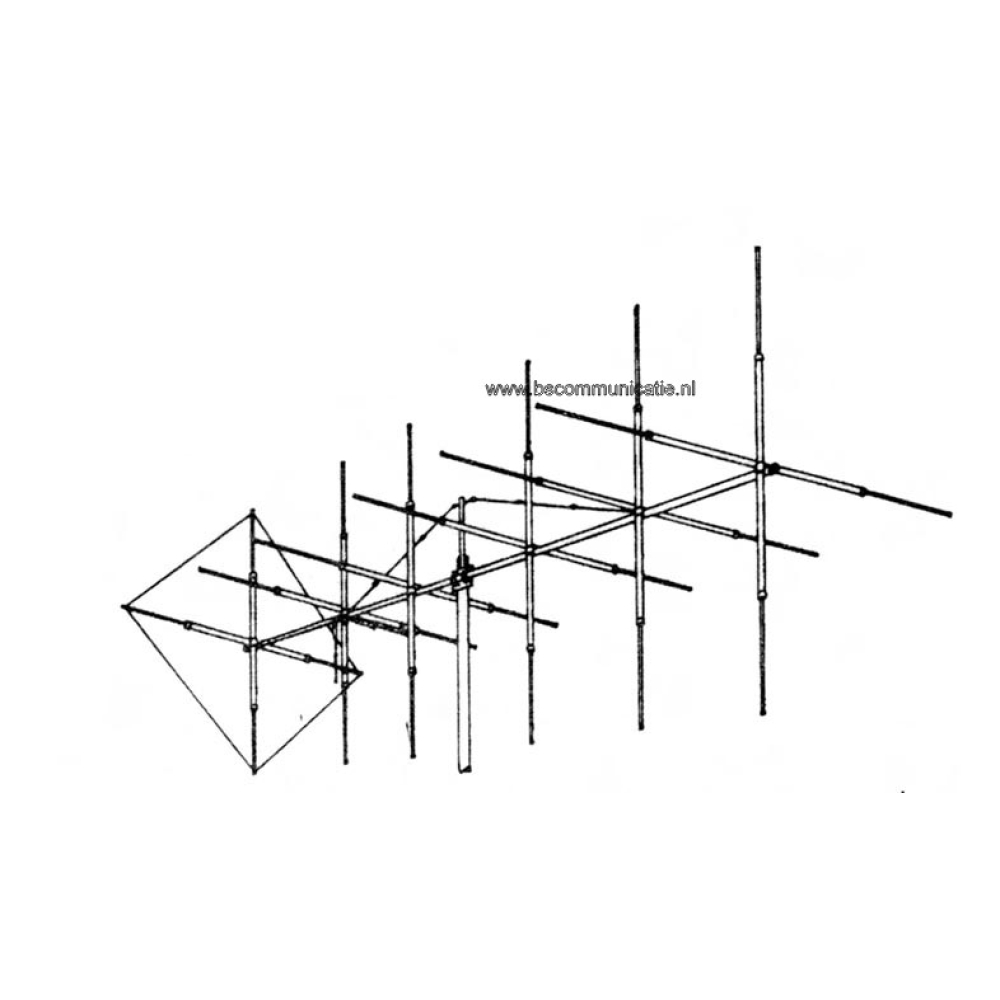

Antenna 10/11 Meter Base, Switchable Polarity 12-Elements Laser Beam. The 12-Element Laser is designed to achieve the maximum gain and front-to-back ratio using a Quad Reflector and Yagi parasitic elements. There are six elements horizontal and six elements vertical, scientifically spaced on a boom of 945 cm. The 12 Element Laser is second only to the Super Laser 500. It uses the same top quality aircraft aluminum that the larger Laser 500 uses, except that model 500 uses a boom OD of 7,6 cm (3 inches)
Kenmerken
- Construction: Telescoping Aluminum Tubing
- Element Clamps: Quality Aluminum, Full Compression, No Holes drilled in elements or boom means longer life
- Boom-to-Element Mount: Heavy Extruded Aluminum
- SWR Adjustment: Gamma Match 52 Ohm
- Power Handling Capability: 2 KW, Optional are 5 KW, 10 KW or 30 KW Gamma Matchers available.
Specificaties
- Boom Length: 945 cm (31 feet)
- Boom OD: 5 cm (2 inches)
- Number of Elements: 12
- Longest Radius: 549 cm (18 feet)
- Turn Radius: 518 cm (17 feet)
- Surface Area: 10,24 m2 (10.5 sq.ft)
- Wind Survival: 135 Km/h (90 Miles)
- Tuning: 11 Meters
- Gain in dB: 17
- Power Multiplication: 50x
- Front-to-Back Separation: 40-44 dB
- VSWR adjustable: 1.1:1
- Weight: 23,6 Kg (52 Pounds)
Inhoud van de verpakking
- 1 Maco Laser 400 basisantenne
- Montage materiaal
- Handleiding in het Engels
Kenmerken
| Fabrikant: | Maco |
|---|---|
| Artikelnummer: | MACOLASER400 |
| Levertijd: | 2-7 Werkdagen |
