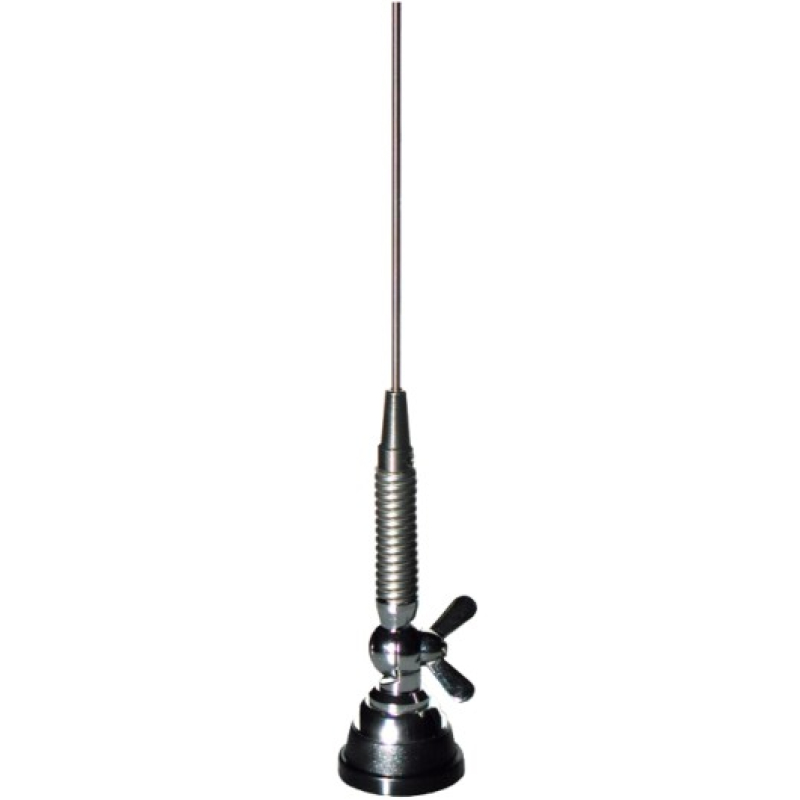

Sirio MGA 108-550 S

Frequentiebereik 55 - 550 MHz

Zendvermogen 100 Watt Max.

5 Meter RG58 kabel

Productomschrijving

Features:

• Up-grade: frequency range extended at 55-550 MHz
• Mobile antenna, Mono-band
• Unity-gain, Omnidirectional
• Tunable by whip cutting
• Supplied with a strong stainless steel spring
• 17/7 PH tapered stainless steel whip
• 180° inclination and adjustable whip, detachable for car-washes access

Electrical Data:

• Type: 1/4 λ
• Fequency Range: MGA 108-550: tunable 108…550 MHz
• Polarization: linear vertical
• Gain: 0 dB ref. to a λ /4 whip
• Max. Power (CW) @ 30°C: 100 Watts
• Standard mount: SL
• Cable Length / Type: 5 m / RG 58

Mechanical Data:

• Materials: Stainless Steel 17/7 PH, Nylon, Chromed Brass
• Height (approx.): 705 mm
• Weight (approx.): 420 gr
• Mounting Hole: Ø 19 mm
