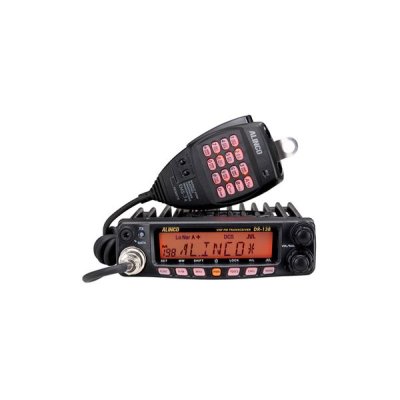

Alinco DR138 (H) VHF


Excl. BTW: €165,25

Excl. BTW:
Alinco DR138 (H) VHF
1-2 werkdagen

Alinco DR138 (H) VHF

Output power selectable 60W/25W/10W

Frequentie: 144.000-145.9975

High technology PLL synthesized


The DR-138 H is a high technology PLL synthesized radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138 H the radio of choice for demanding amateur/professional operators.

Download here the Flyer

Technical specifications:

  • Frequentie: VHF
  • Output power selectable 60W/25W/10W
  • Frequency range: 144.000-145.9975
  • PC programmable 200ch
  • Alphanumeric name tags
  • Voice Compander (Reduce Noise & enhance audio clarity)
  • Calling features built in;2-Tone, 5-Tone, 50 CTCSS, 114DCS, 4 Toneburst tones and DTMF/ANI decode
  • Radio stun/kill/revive functions to protect your communication security
  • Large, bright LCD and easy to operate backlit keys
  • Multifunction, backlit microphone enables direct frequency entry & more from keypads
  • Various scan modes, Key lock, Wide/Narrow operation
  • Inversion scramble feature
  • Channel Spacing
    25KHz (Wide mode)
    20KHz (Middle mode)
    12.5KHz (Narrow mode)
  • Channel step
    2.5KHz,5KHz, 6.25KHz, 8.33KHz, 10KHz,
    12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
  • Operating Voltage 13.8V DC ±15%
  • Squelch Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
  • Frequency Stability ±2.5ppm
  • Operating Temperature -20~+60
  • Dimensions 145 (W) x 47 (H) x 190 (L)mm approx.
  • Weight approx. 1.23kg

Package contents:

  • 1 x Alinco DR-138 H Transceiver
  • 1 x Microphone
  • 1 x Mounting Bracket with Fixing Screws
  • 1 x Power Cord
  • 1 x User Manual in English



Fabrikant: Alinco
Artikelnummer: K1188
Levertijd: 2 - 4 Weken
Bands: VHF
Carrier power: Selectable 60W/25W/10W
Frequentie bereik: 144.000-145.9975
R.F. Gain: Yes
Mic Gain: Yes
DCS: 114 DCS
Display: Large bright LCD display
