Maco Astroid 10/11meter basisantenne

Lengte 793cm

Gain 15.5 dB

10 Elementen

Productomschrijving

Kenmerken

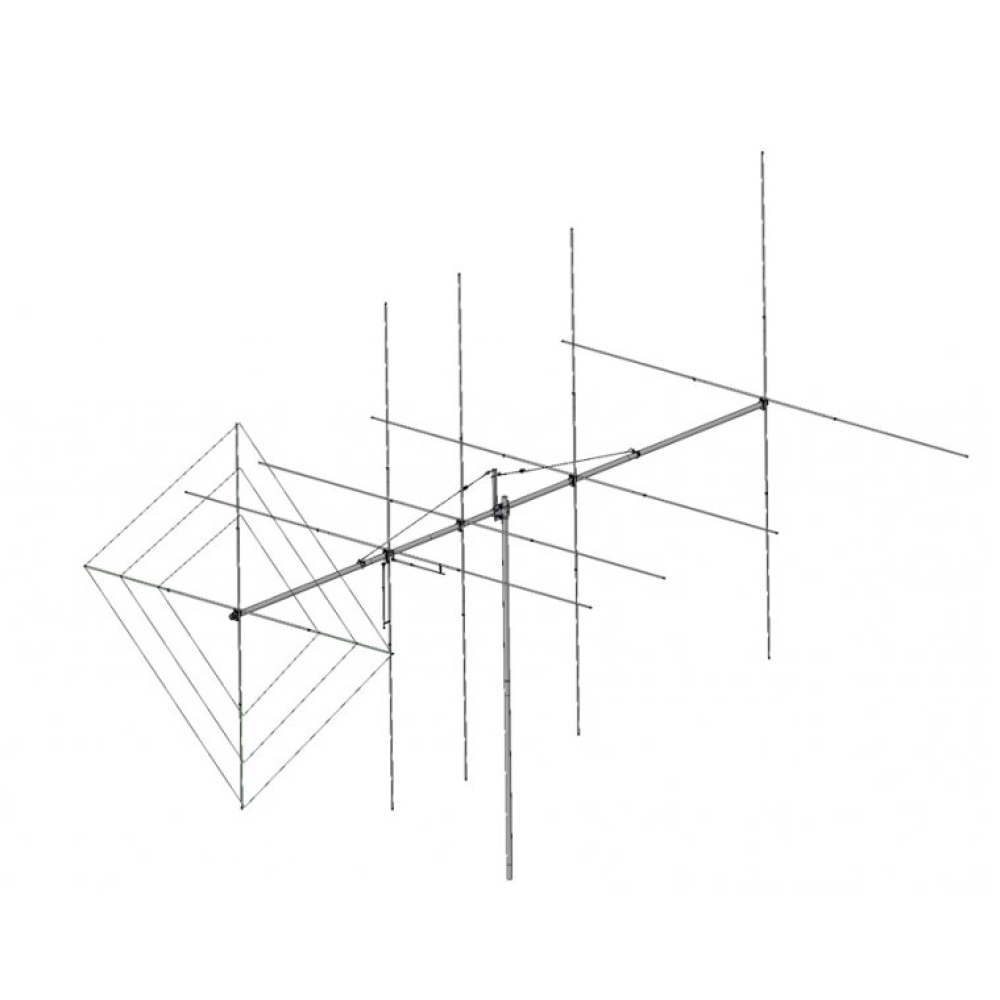

This is a high performing, dual polarity beam that is sure to impress. Boasting 10 elements, 5 vertical and 5 horizontal, it is mounted on a 26’ boom. It features a multiscreen reflector and is designed to give you the best combination of gain and front-to-back ratio. As always, the Maco gamma matches are fully adjustable to obtain the lowest SWR for both vertical and horizontal polarization. Comes stock with two 2kW gammas, which can be upgraded by the customer to our 5, 10, or 30 kW gammas.

Specificaties

• Lengte 793 cm(26 Feet)
• Boom OD: 5 cm (2 Inch)
• Aantal elementen 10
• Langste element is 533 cm (17.5 Feet)
• Turn Radius: 488 cm (16 Feet)
• Wind Load: 1,1 m2 (11.84 Sq Ft)
• Wind Survival: 144 Km/h (90 mph)
• Gain: 15.5 dB
• Front to Back Separation: up to 40 dB
• Power Multiplication: 40X
• Tuning: 10/11 Meters
• Power Handling: 2kW stock (upgradable to 5,10,30 kW)
• Gewicht 20 Kg (45 lbs)

Inhoud van de verpakking

• 1 x Maco Astroid antenna
• Montage materiaal
• Handleiding in het Engels
