€514,00
Excl. BTW: €424,79
- Excl. BTW:
- €424,79
- Model:
- Maco Comet Basisantenne 10/11 Meter
- Levertijd:
- 3-4 werkdagen
- Merk:
- Maco
Omschrijving
Alleen te bestellen op onze website

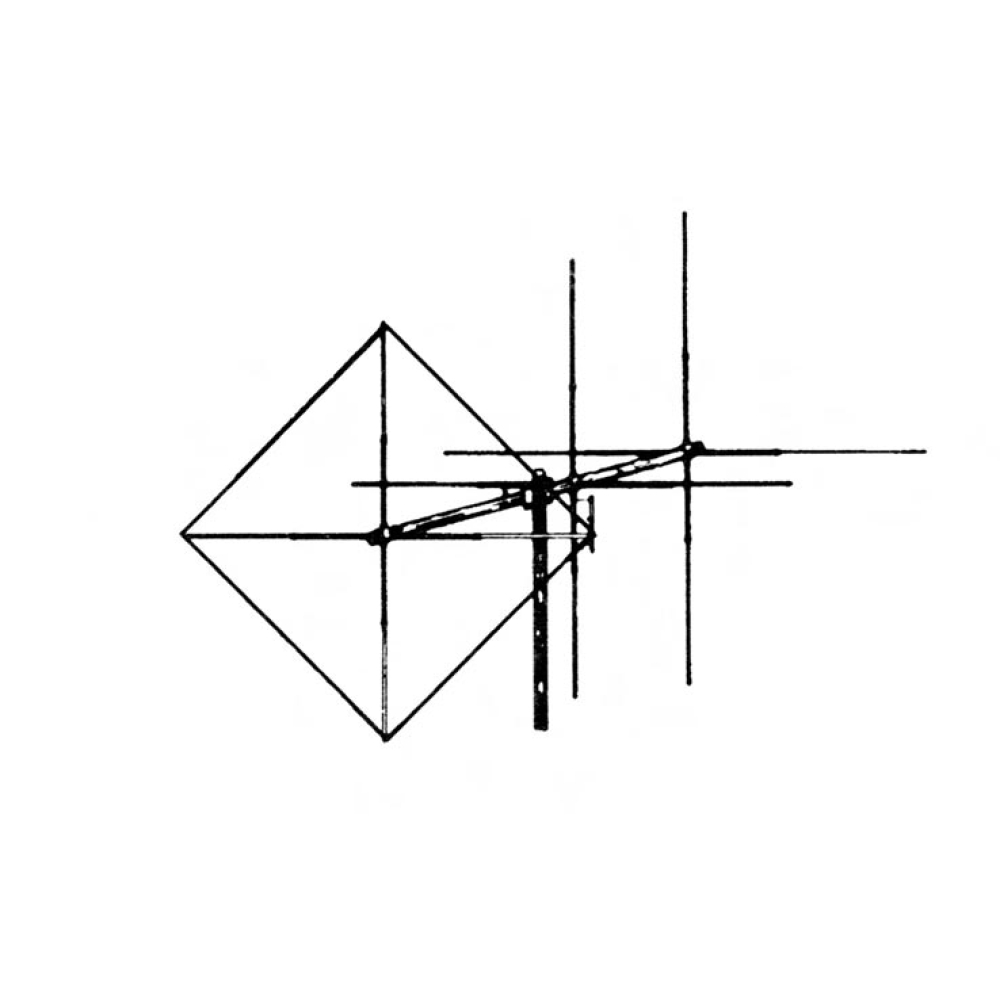

Maco Comet basisantenne 10/11 meter
Lengte 351cm
Gain 12.5dB
6 Elementen
Productomschrijving
Antenna 10/11 Meter Base, A long-distance 6-Element Base Station Antenna with 12.5 dB Gain and Dual Polarity. This antenna is designed for CBers who want a booming base station but space is a problem. And, it has the MACO 2 KW Power handling capability.
Kenmerken
- Construction: Telescoping Aluminum Tubing
- Element Clamps: Quality Aluminum, Full Compression, No Holes drilled in elements or boom means longer life
- Boom-to-Element Mount: Heavy Extruded Aluminum
- SWR Adjustment: Gamma Match 52 Ohm
- Power Handling Capability: 2 KW, Optional are 5 KW, 10 KW or 30 KW Gamma Matchers available.
Specificaties
- Boom Length: 351 cm (11,5 feet)
- Boom OD: 3,8 cm ( 1.5 inches)
- Number of Elements: 6
- Longest Radius: 533 cm (17,5 feet)
- Turn Radius: 320 cm (10.5 feet)
- Surface Area: 1,49 m2 (4 sq.ft)
- Wind Survival: 135 Km/h (90 Miles)
- Tuning: 11 Meters
- Gain in dB: 12.5
- Power Multiplication: 21x
- Front-to-Back Separation: 34 dB
- VSWR adjustable: 1.1:1
- Weight: 9.5 Kg (21 Pounds)
PACKING INCLUDES:
- Antenna
- Mounting Materials
- Instructions in English
Kenmerken
| Fabrikant: | Maco |
|---|---|
| Artikelnummer: | MACOCOMet |
| Levertijd: | 2-7 Werkdagen |
