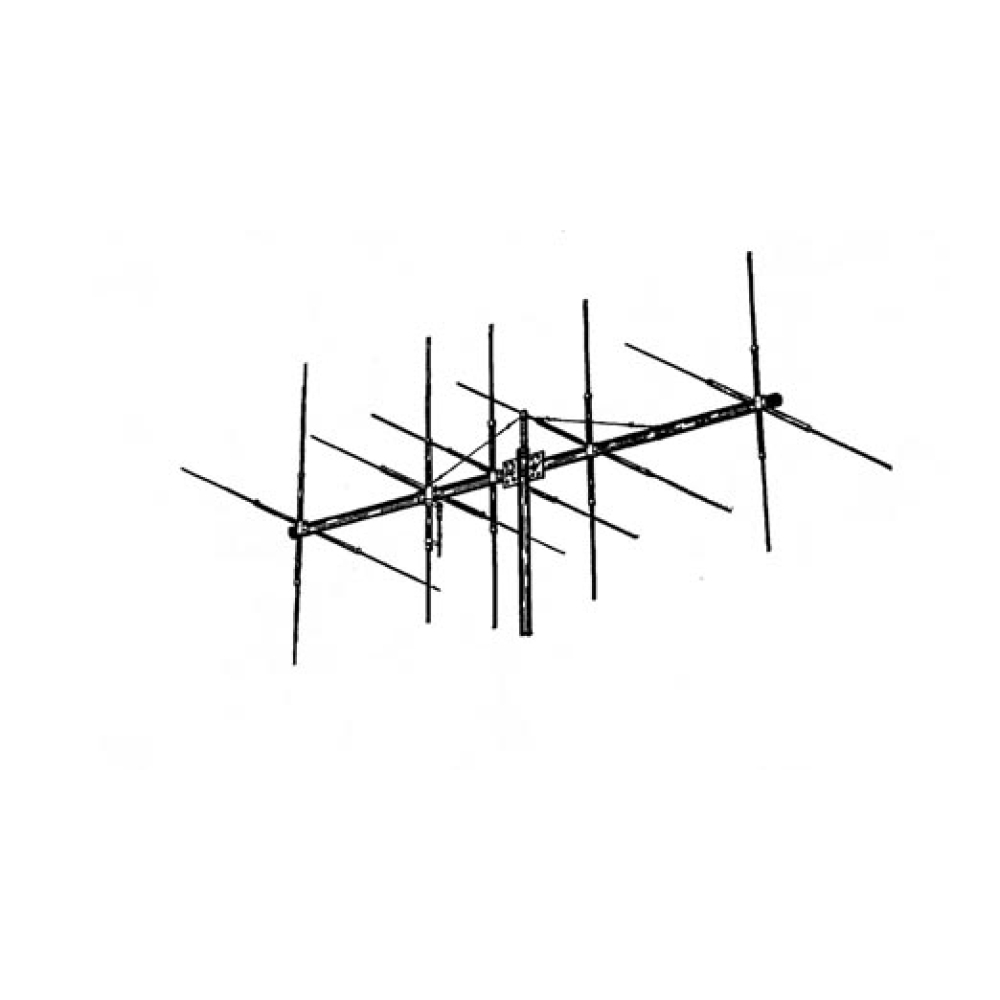

Maco M105C-HV Basisantenne Met 10 Elementen

1.084,00

Excl. BTW: €895,87

Excl. BTW:
€895,87
Model:
Maco M105C-HV Basisantenne Met 10 Elementen
Levertijd:
7 werkdagen
Merk:
Maco
Omschrijving

Maco M105C-HV basisantenne met 10 elementen

Lengte 793cm

Gain 15.5dB

10 Elementen


Productomschrijving

Kenmerken



In the classic directional Yagi design, the Maximum Beams line of base station antennas can be mounted either vertically or horizontally for best base to mobile or base to base communications. Choose from the basic three-element M103C model up to the sophisticated M108C. Most economical antenna of its type on the market today, all Maximum Beams feature MaCo adjustable gamma match for high performance. Ruggedly built, swaged, slotted tubing for maximum strength with minimum wind loading.

  • Construction: Telescoping Aluminum Tubing
  • Element Clamps: Quality Aluminum, Full Compression, No Holes drilled in elements or boom means longer life
  • Boom-to-Element Mount: Heavy Extruded Aluminum
  • SWR Adjustment: Gamma Match 52 Ohm
  • Power Handling Capability: 2 KW, Optional are 5 KW, 10 KW or 30 KW Gamma Matchers available.

Specificaties

  • Boom Length: 793 cm (26 feet)
  • Boom OD: 5 cm (2 inches)
  • Aantal elementen: 10
  • Langste element: 579 cm (19 feet)
  • Turn Radius: 457 cm (15 feet)
  • Surface Area: 6,67 m2 (8.47 sq.ft)
  • Wind bestendig tot 135 Km/h (90 Miles)
  • Tuning: 10/11 Meters
  • Gain in dB: 15.5
  • Power Multiplication: 40x
  • Front-to-Back Separation: 31 dB
  • VSWR adjustable: 1.5:1 or less
  • Gewicht 18,2 kg (35 Pounds)

Verkrijgbare accessoires

  • Use Maximum Beam Stacking Kit for 3 dB Gain over Single Antenna.

Inhoud van de verpakking

  • 1 Maco M105C-HV basisantenne
  • Montage materiaal
  • Handleiding in het Engels

Kenmerken

Fabrikant: Maco
Artikelnummer: M105C-HV
Levertijd: 2-7 Werkdagen
