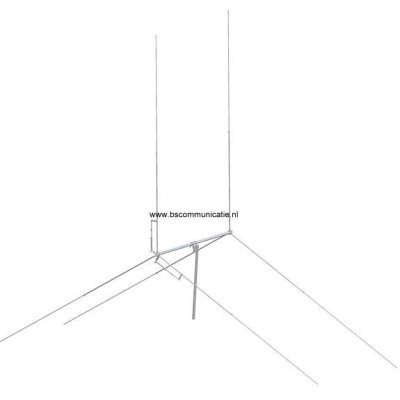

Gizmotchy G-21 basisantenne

Lengte 160cm

Gain 9dB

6 Elementen

Productomschrijving

• Number of elements; 6
• Boom Length: 160 cm (5.25)
• Boom OD: 3,2 cm (1.25)
• Turn Radius: 297 cm (9.75)
• Surface Area: 0,72 m2 (2.8 sq ft.)
• Wind Survival: 135 Km/h ( 90 mph)
• Tuning: 10/11 Meters
• Gain dB: 9
• Power Multiplication: 21
• Front to back Separation (dB): 23
• Weight: 4,54 Kg (10 lbs)

Gizmotchy® beams are made to build upon. For example, you can choose to start out with a 3 element beam and then you can increase your boom length, number of elements, DB gain, etc at any point by adding one or more Gizmotchy® Power Boosters.
Each set of vertical/horizontal elements is counted as 1 element - so a 3 element Gizmotchy® beam actually has 9 elements (3 vertical, 6 horizontal)

Kenmerken Gizmotchy antennes

• Wind survival rating is 135 Km/h (90 mph) - as long as sheet metal screws (included with beam) are used as recommended.
• All Gizmotchy 10/11 Meter Beams use 2 feed lines, can be used in either horizontal or vertical mode with a standard coax switch.
• A gizmotchy Support Kit is recommended for beams exceeding 5 elements.
• All 10/11 Meter Beams are available with either 1500 or 5000 Watt gammas.
• All Gizmotchy Products are proudly made in the USA.

Inhoud verpakking

• 1 Gizmotchy G21 Antenna
• Montage materiaal
• Handleiding in het Engels
