€49,95
Excl. BTW: €41,28
- Excl. BTW:
- €41,28
- Model:
- Sirio GPA 108-136
- Merk:
- Sirio
Omschrijving
SIRIO GPA 108 - 136
Levertijd: 1-3 WerkdagenVHF Basis antenne
Aansluiting: UHF-female
Frequentie: 108 tot 136 MHz
Productomschrijving

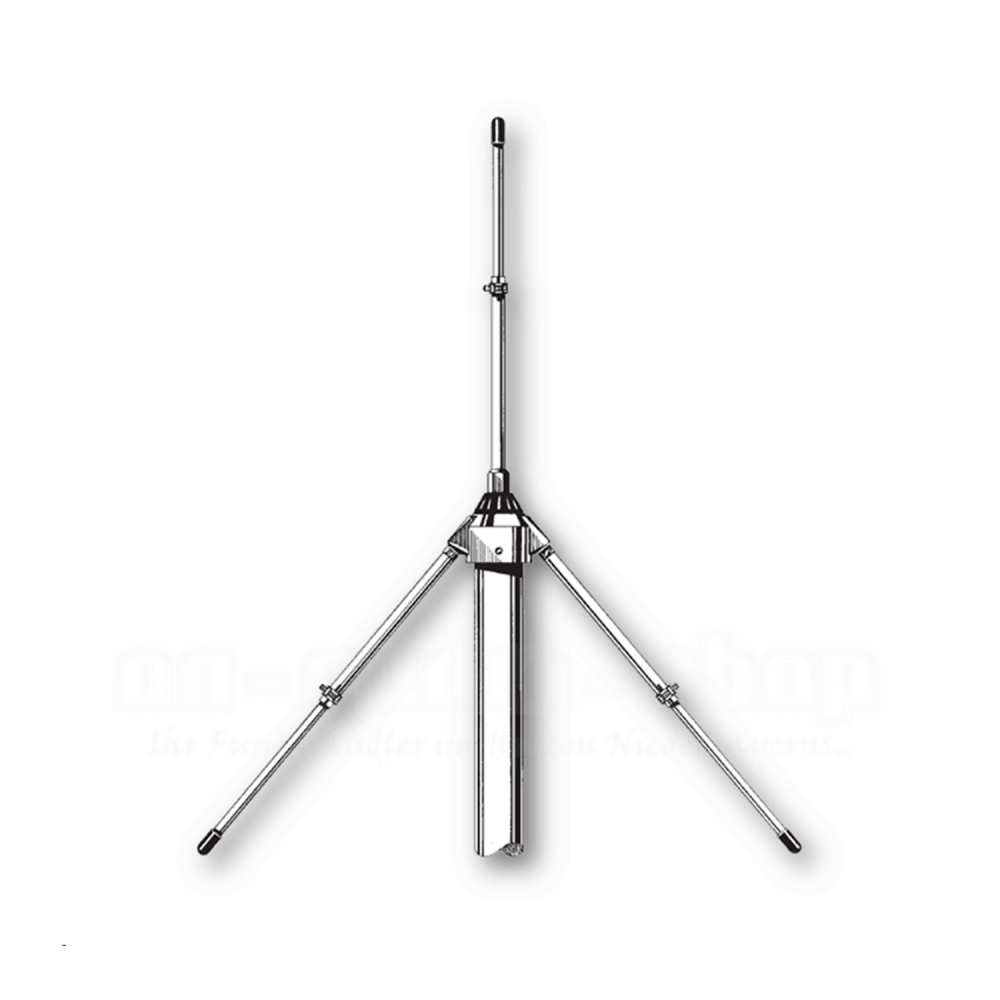

Sirio GPA 108-136 MHz VHF Basisantenne
Features:
- Base station antenna, Mono-band
- Omnidirectional, Unity gain
- Made of aluminium alloy 6063 T-832
- Tunable by whip length adjusting
- Side mast mounting allowed by optional bracket FT-2
Electrical Data:
- Type: 1/4λ ground plane
- Frequency range: tunable 108…136 MHz
- Gain: 0 dBd – 2.15 dBi
- Bandwidth @ SWR ≤2: ≥12.2 MHz @ 108 MHz
- Max. Power (CW) @ 30°C: 500 Watts
- Connector: UHF-female
Mechanical Data:
- Materials: Aluminium, Chromed brass, Nylon
- Height (approx.): 1185 mm
- Weight (approx.): 565 gr
- Mounting mast: Ø 35-40 mm
Kenmerken
| Fabrikant: | Sirio |
|---|---|
| Artikelnummer: | 2108501.00 |
| Levertijd: | 1-3 Werkdagen |
| Type: | 1/4λ ground plane |
| Gewicht: | 565 gr |
| Zendvermogen: | 500 Watt |
| Impedantie: | 50 Ohm |
| Gain: | 0 dBd – 2.15 dBi |
| Frequentie bereik: | 108…136 MHz |
| Aansluiting: | UHF-female |
| Afmetingen L x B x H ( cm ): | Lengte: 1185 mm |
