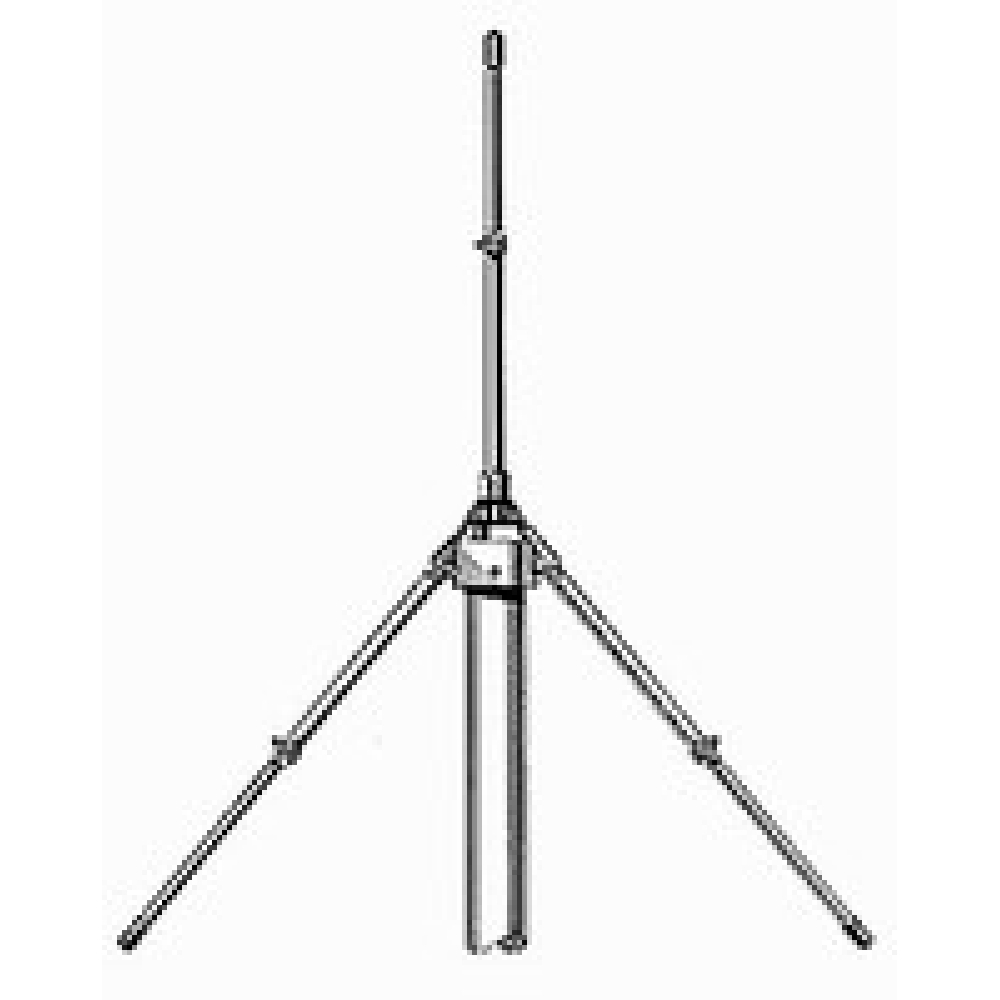

Sirio Signal Keeper 27

1/4 Golf base loaded ground plane

Gain: 0 dBd, 2.15 dBi

Bandwidth at S.W.R. 2:1: 850 KHz
De Sirio Signal keeper heeft een mast nodig voor montage met een diameter van 35 - 40mm

Technische specificaties van de Sirio Signal Keeper:

• Type: 1/4 Golf base loaded ground plane
• Frequency range: 26-28 MHz
• Impedance: 50Ω unbalanced
• Polarization: vertical
• Gain: 0 dBd, 2.15 dBi
• Bandwidth at S.W.R. 2:1: 850 KHz
• S.W.R. at res. freq.: ≤ 1.2:1
• Max. power:
  100 Watts (CW) continuous
  300 Watts (CW) short time
• Feed system / position: Direct / Center
• Connector: UHF-female
• Materials: Aluminium, Steel, Nylon
• Wind load / resistance: 36 N at 150 Km/h / 130 Km/h
• Wind surface: 0.03 m
• Height (approx.): 2370 mm
• Weight (approx.): 640 gr
• Radial length (approx.): 640 mm
• Mounting mast: 35-40 mm
•  Levertijd: 1-2 Werkdagen
